Pool lift ‘Delphin’ (Dolphin)
Specifications
Max. loading capacity:
130 kg
Required water
pressure:
4 bar
Maximum travel:
1600 mm
Material:
Stainless steel AISI 316

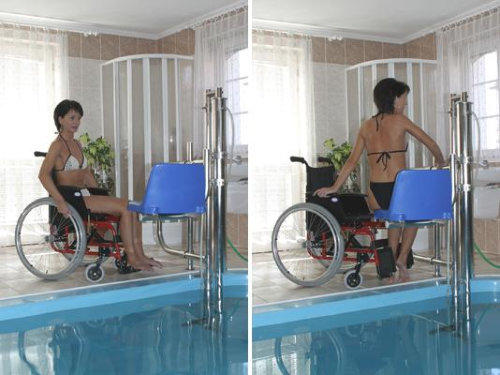

The pool-lift ‘Delphin’ (Dolphin) is a valuable aid to get in or
out of a swimming pool without the need for an assisting
person. Operating levers at the upper as well as at the lower
level allow simple operation of the unit. The height-adjustable
seat turns automatically 90° when lowering or rising.
No underwater installation is necessary. The pool-lift runs on
4 bar household water pressure! No electric components!

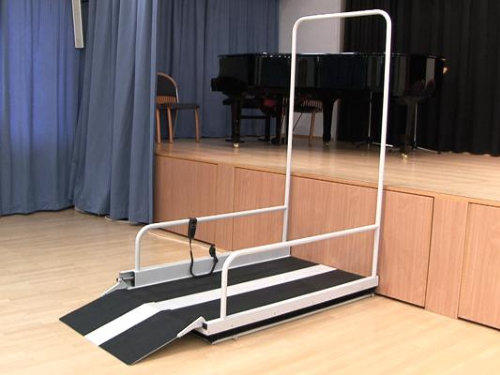

Vertical Platform Liftboy
Specifications
Max. lifting height:
Liftboy 1: 595 mm
Liftboy 2: 830 mm
Loading capacity:
Liftboy 1: 180 kg
Liftboy 2: 300 kg
Lifting speed:
10 mm/s
Surface treatment:
Powder-coated in RAL
7035
Optional any RAL
colour
Optional in stainless
steel
Net weight:
Liftboy 1: 53 kg
Liftboy 2: 95 kg
Power supply:
1x230 V / 24 V

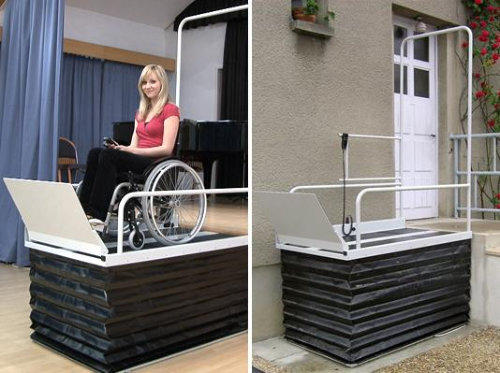

A Liftboy is the perfect solution when ramps
are too steep or too long and conventional
vertical platform lifts are inadequate and too
expensive.
The Liftboy can be placed indoor or outdoor in
order to overcome height differences of up to
830mm. As a mobile version, the Liftboy can
be equipped with transport wheels in order to
facilitate an easy transport to the storage
location.
Please download the “Emergency Evacuation Planning Guide For People with
Disabilities” provided by NFPA the National Fire Protection Association US.
Their recommendation: Use of an evacuation device like the “Evac Skate” in
case of an emergency for the evacuation of people with disabilities.
Evac Skate - Fast emergency evacuation
The Evac Skate is an evacuation device used to move
people with a disability or injury down stairways quickly and
safely during an emergency.
Its patented speed governor and braking system allows a
small attendant to easily evacuate a larger passenger.
In an emergency such as a fire or an earthquake, elevators
should not be used. People with limited mobility may be
trapped. Evac Skate provides a lifeline to safety.

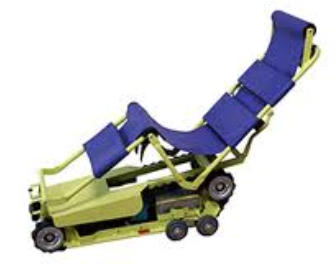

Stair climber ‘Stair Chair’
The Stair Chair provides easy transport up and
down stairs for people who are handicapped when
it comes to climbing stairs. Guided by only one
person, Stair Chair climbs straight stairs up to a
max. stair angle of 35°.
down stairs for people who are handicapped when
it comes to climbing stairs. Guided by only one
person, Stair Chair climbs straight stairs up to a
max. stair angle of 35°.
The ‘Stair Chair’ is a battery operated vehicle made
to carry a person with walking disabilities up and
down stairs. Also used for “Upstairs“ evacuation.
Benefits
•
Mobile to be used on various stairs
•
Collapsable, small enough for nearly any trunk
•
Ideal for old people homes, hospitals, private use
Capacity 130 kg
Measurements L x W x H mm 1321 x 415 x 908
Measurements collapsed mm 1080 x 415 x 510
Weight 59 kg
Speed upstairs 7.7 m / min.
Speed downstairs 11.9 m / min
Stair angle max. 35°
Magnetic brake
Battery (included) 1 x 12 V / 17 Ah
Battery capacity per charge min. 180 m upstairs
Accessories:
Automatic charger 12 V / 2.5 A
Cabinet for storage of the Stair Chair available.
Minimum stair landing dimensions: length 1050 mm
width 1840 mm
Minimum stair width 900 mm
Measurements LxWxH 1310x426x810 mm
Measurements collapsed LxWxH 1100x426x270 mm
Capacity 135 kg
Weight 21 kg
Speed 1.1 m/sec
Stair angle max 40 degree
Cabinet for storage of Evac Skate available.
Features
- Quick and easy set up for immediate use.
- Carries up to 135 kg
- Passengers weight moves unit down stairs,
while the governor controls speed
- Failsafe brake brings unit to a complete stop automatically
- Adjustable safety straps
- Stable and self-supporting
- Unique seat design allows easy transfer from wheelchair
- Durable tracks grip stairs securely - regardless of the stair
construction material
Benefits
- Provides quick and safe emergency evacuation
- No hand carrying of mobility impaired persons
- Small attendants can easily move heavier passengers
- Easily stores in a secure area when not in use
- Requires minimal maintenance
Click here for brochures:
Model ‘Standard SA-2’ Model ‘Standard SA-3’
Click here for brochures:
Model ‘Standard SA-2’ Model ‘Standard SA-3’
Click here for video and brochures:
Click here for video and brochures:
OneWe is a registered trademark
